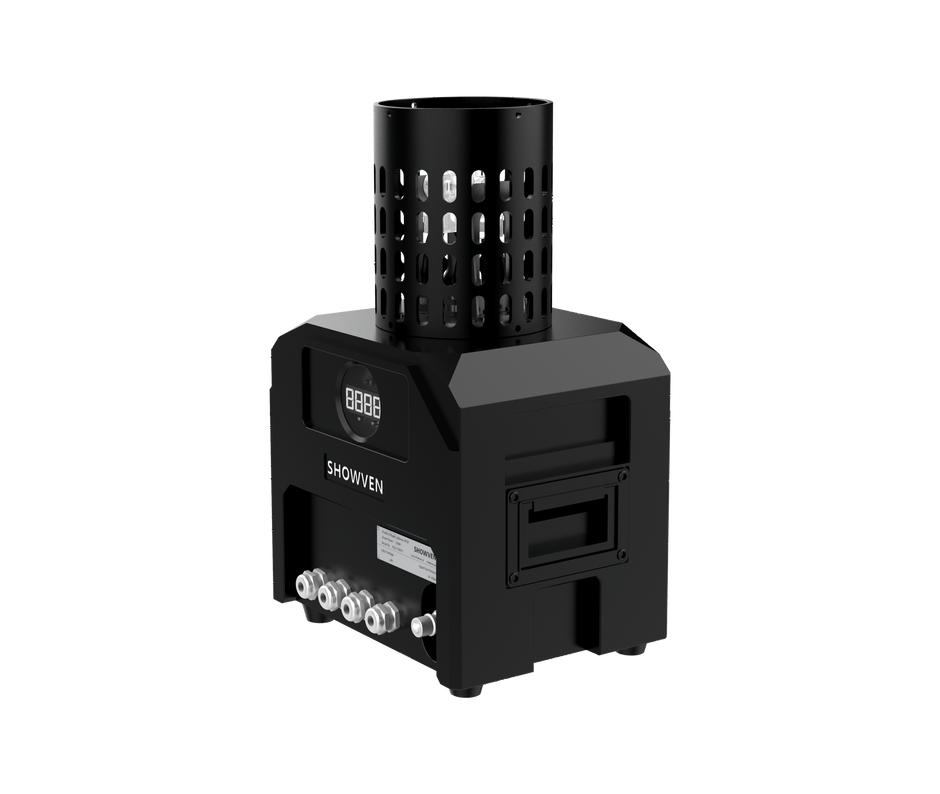

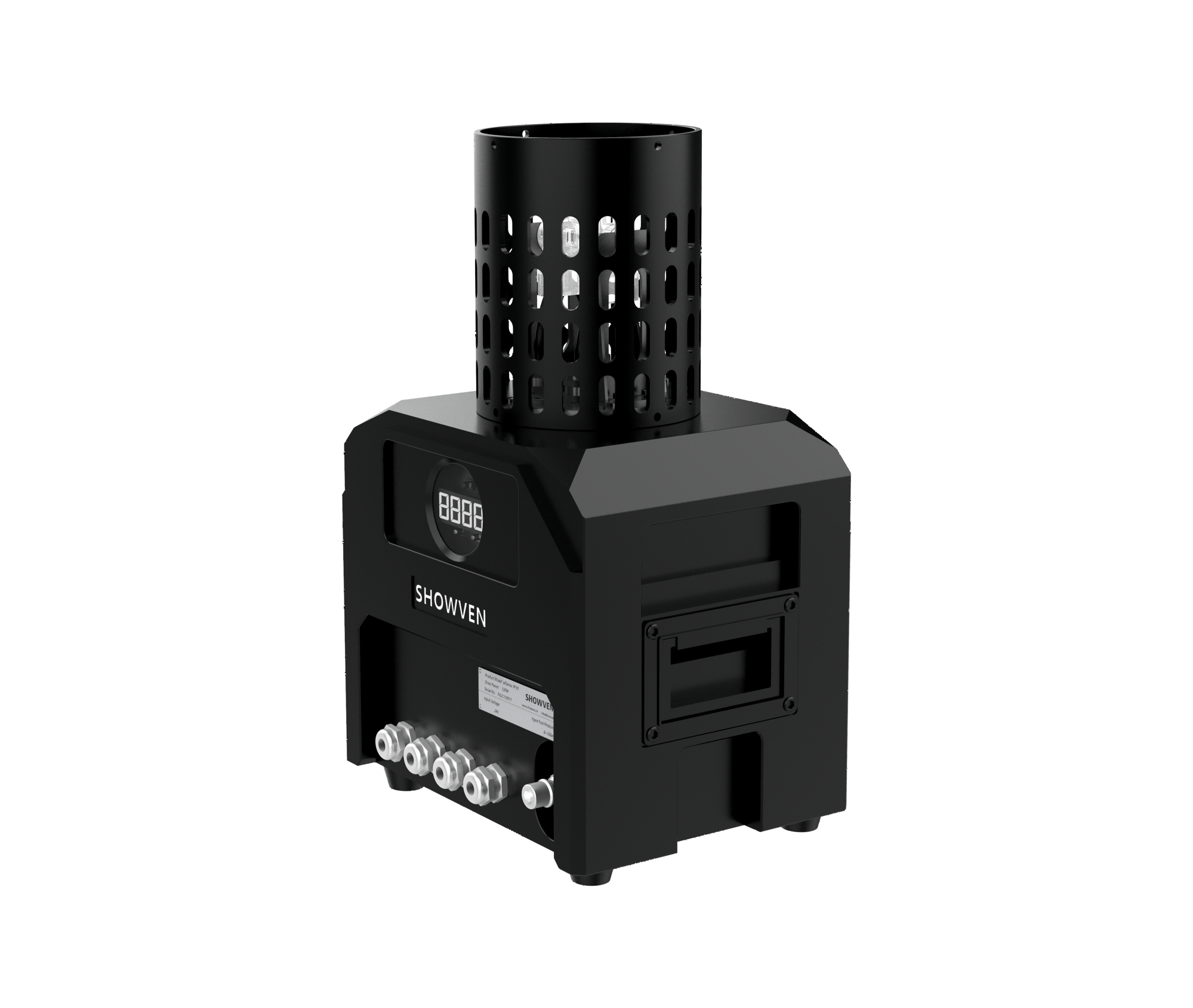

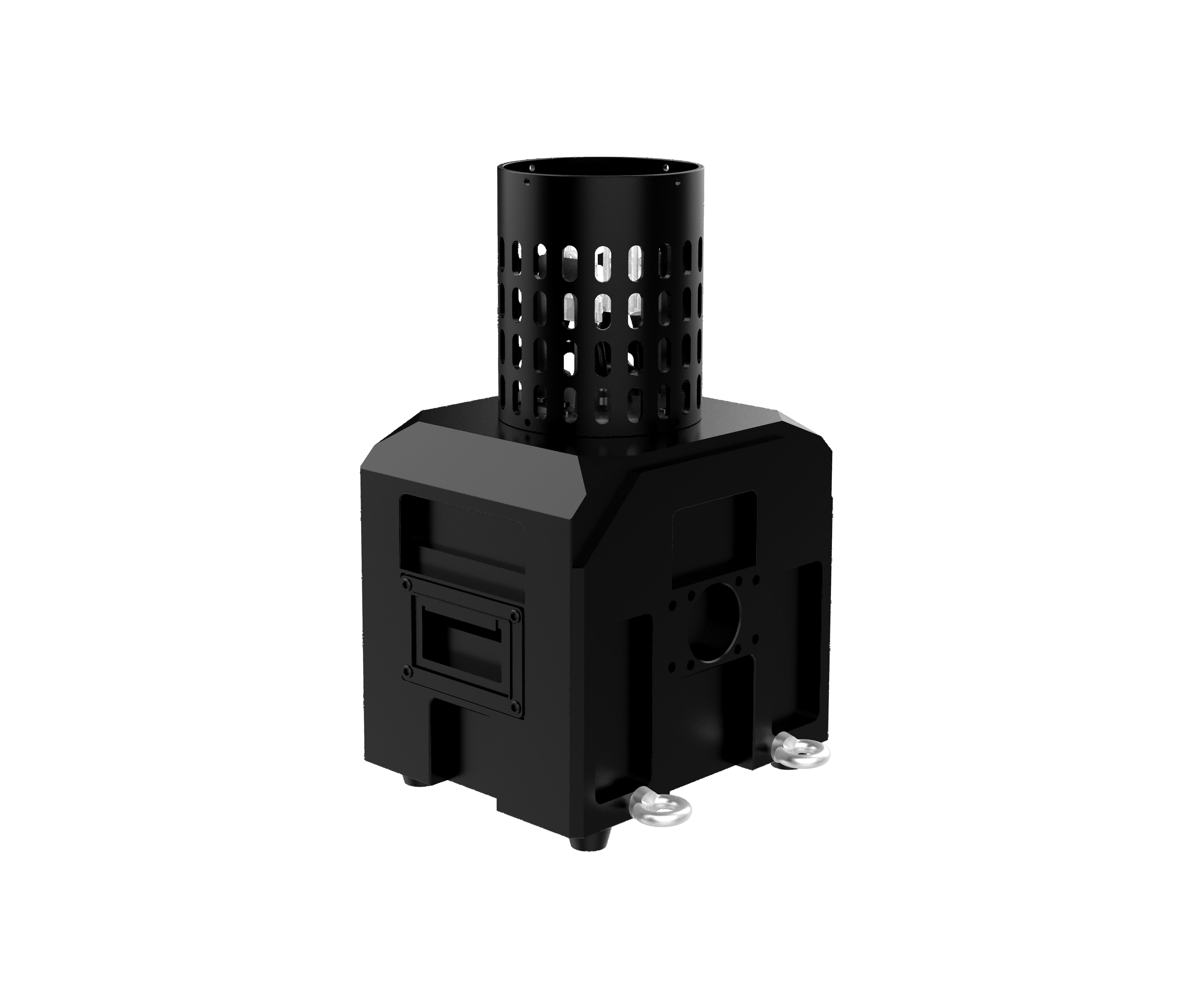

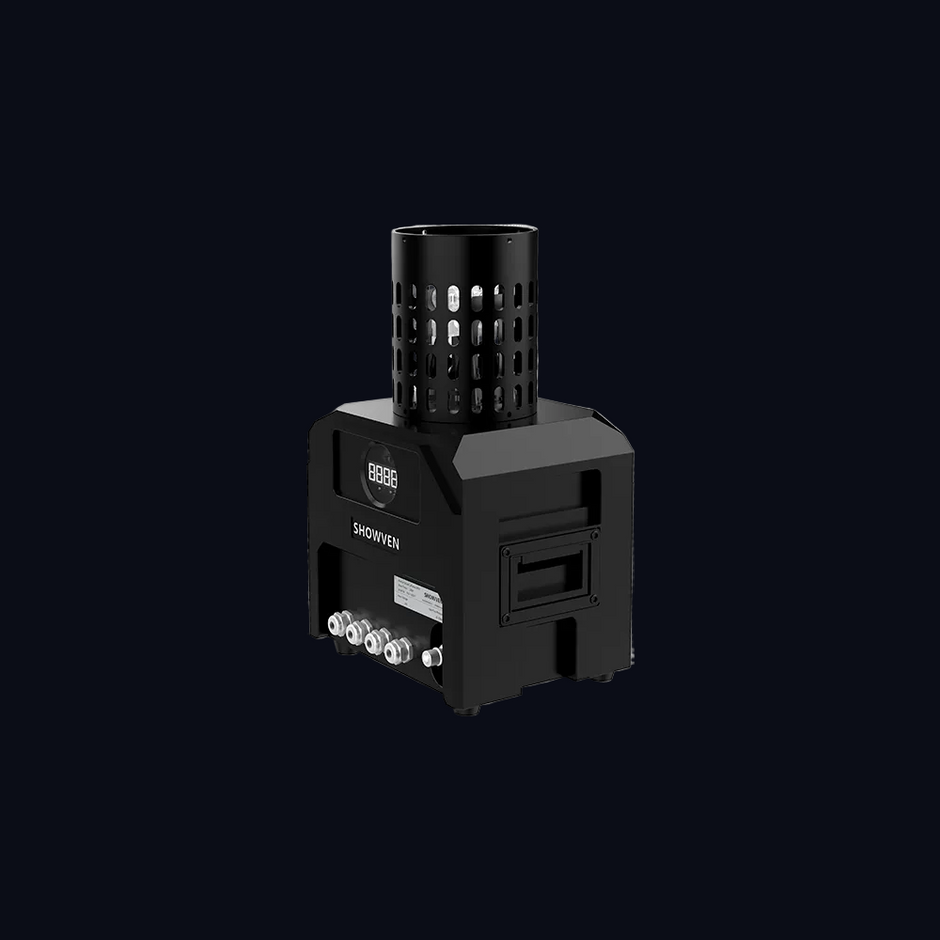

Flame Head – uFlamer® PF10

Bring powerful and flexible fire effects to your events with the SHOWVEN® Flame System, a compact hydraulic flame solution designed for project-based and truss-mounted installations.

This system includes a flame head, pump station, control box, and essential accessories such as hoses and cables—providing a complete, ready-to-deploy setup for professional productions.

Thanks to its hydraulic fuel delivery system, it allows remote fuel supply without the need for nitrogen tanks, making it a safer, cleaner, and more efficient alternative to traditional flame systems.

Flexible Design for Creative Freedom

One of the standout features of this system is its multi-angle installation capability. The flame head can be mounted in any direction—even upside down, giving event designers and production teams unlimited creative possibilities for unique fire effects.

 Key Features

• High Flame Output – Up to 10 meters height
• Hydraulic System – No nitrogen tank required
• Flexible Installation – Works in any direction (even inverted)
• Dual Control Modes – DMX & direct ON/OFF customizable
• Dual Ignition System – High-voltage electronic ignition for reliability
• Lightweight Design – Only 15 kg for easy installation
• Durable Aluminum Housing – Strong yet lightweight construction

Technical Specifications

• Dimensions: 250 × 200 × 410 mm
• Net Weight: 15 kg
• Housing Material: Aluminum
• Input Voltage: 220V / 110V / 24V (customizable)
• Power Consumption: 120W
• Flame Height: Up to 10 meters
• Fuel Type: ISOPAR
• Fuel Consumption:
  • 60 ml/s (Nozzle M)
  • 30 ml/s (Nozzle L)
• Ignition System: Dual high-voltage electronic ignition
• Control Options: DMX, Direct ON/OFF (customizable)
• Working Pressure: 8–12 Bar
• Quick Couplers: ISO7241B G1/4 Male
• Installation Angles: Any direction (including upside down)

 Ideal For

• Concerts & Live Shows
• Stage Productions
• Event Openings & Ceremonies
• Film & TV Sets
• Indoor & Outdoor Installations

Why Choose This SHOWVEN Flame System?

This compact version of the SHOWVEN® Flame System is perfect for professionals who need powerful flame effects in a smaller, more flexible form factor. With its lightweight design, hydraulic efficiency, and versatile mounting options, it delivers maximum creativity with minimal setup complexity.
